New

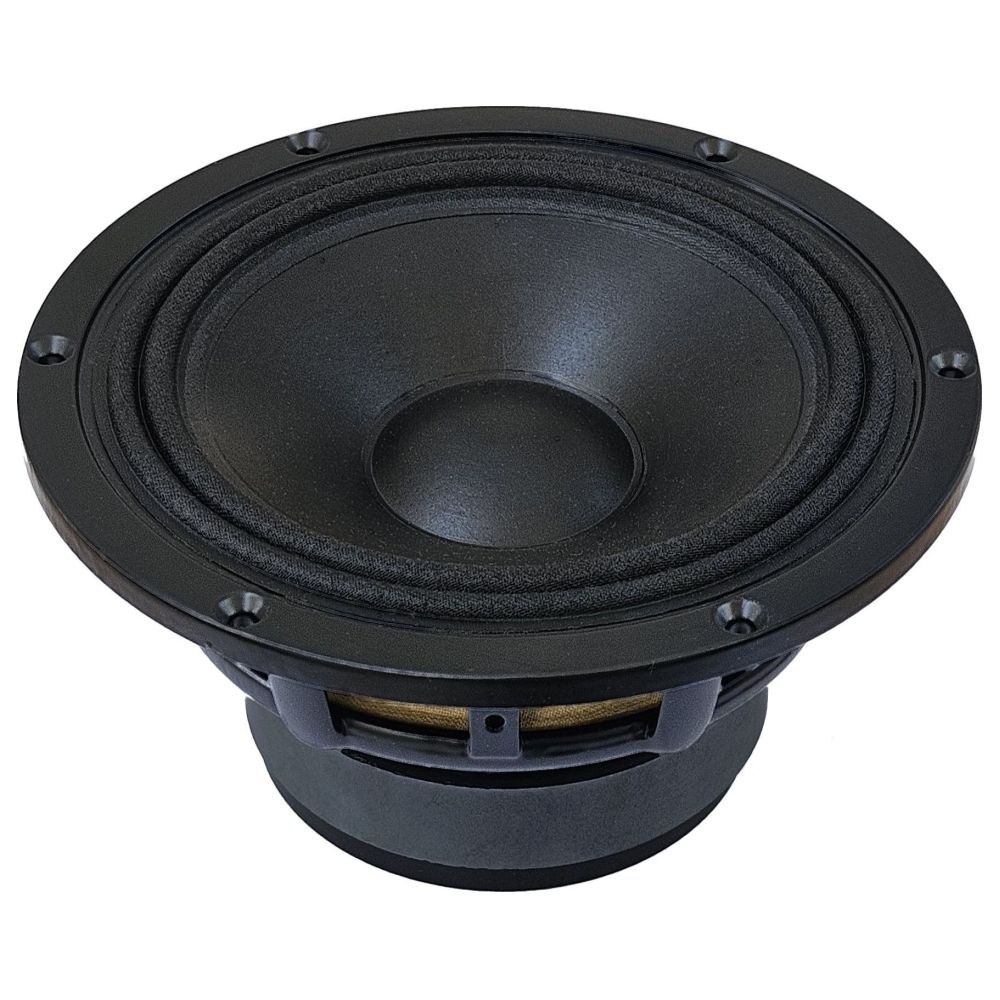

HMB165
LF Driver
6.5 Inches
CAR
HOME
Magnet Material
Ferrite
Voice Coil Diameter
32 mm 1.25 in
Continuous Power Handling
180 W
Sensitivity
92.5 dB
Magnet Material
Ferrite
Voice Coil Diameter
32 mm 1.25 in
Continuous Power Handling
180 W
Sensitivity
92.5 dB
Specifiche
Nominal Diameter
165 mm (6.5 in)
Nominal Power Handling
90 W
Sensitivity
92.5 dB
Voice Coil Diameter
32 mm (1.25 in)
Former Material
Aluminum
Magnetic Gap Depth
6 mm (0.24 in)
Impedenza nominale
8 Ω
Continuous Power Handling
180 W
Frequency Range
90 Hz - 6000 Hz
Winding Material
Copper
Winding Depth
10 mm (0.39 in)
Parametri
Fs
86 Hz
Qes
0.63
Qts
0.53
Sd
135 cm² (20.93 in²)
Xmax
3.5 mm (0.14 in)
Bl
7 Tm
d
131 mm (5.16 in)
Re
5.7 Ω
Qms
3.19
Vas
8.6 dm³ (0.3 ft³)
η0
0.84 %
Mms
10 g
Le
0.49 mH
EBP
137 Hz
Design
Surround Shape
Double Roll
Magnet Material
Ferrite
Recommended Loading
Sealed box
Suspension
Nomex Fabric
Cone Shape
Exponential
Recommended Enclosure
6 dm³ (0.21 ft³)
Connection Type
Fast-On
Cone Material
Doped cellulose fiber
Informazioni di montaggio e spedizione
Diametro totale
174 mm (6.85 in)
Baffle Cutout Diameter
146 mm (5.75 in)
Flange and Gasket Thickness
6 mm (0.24 in)
Shipping Units
4 pcs
Bolt Quantity
6 pcs
Bolt Circle Diameter
164 mm (6.46 in)
Depth
79 mm (3.11 in)
Net Weight
1.69 kg (3.73 lb)
Basket Material
Aluminum
Bolt Diameter
4.5 mm (0.18 in)
