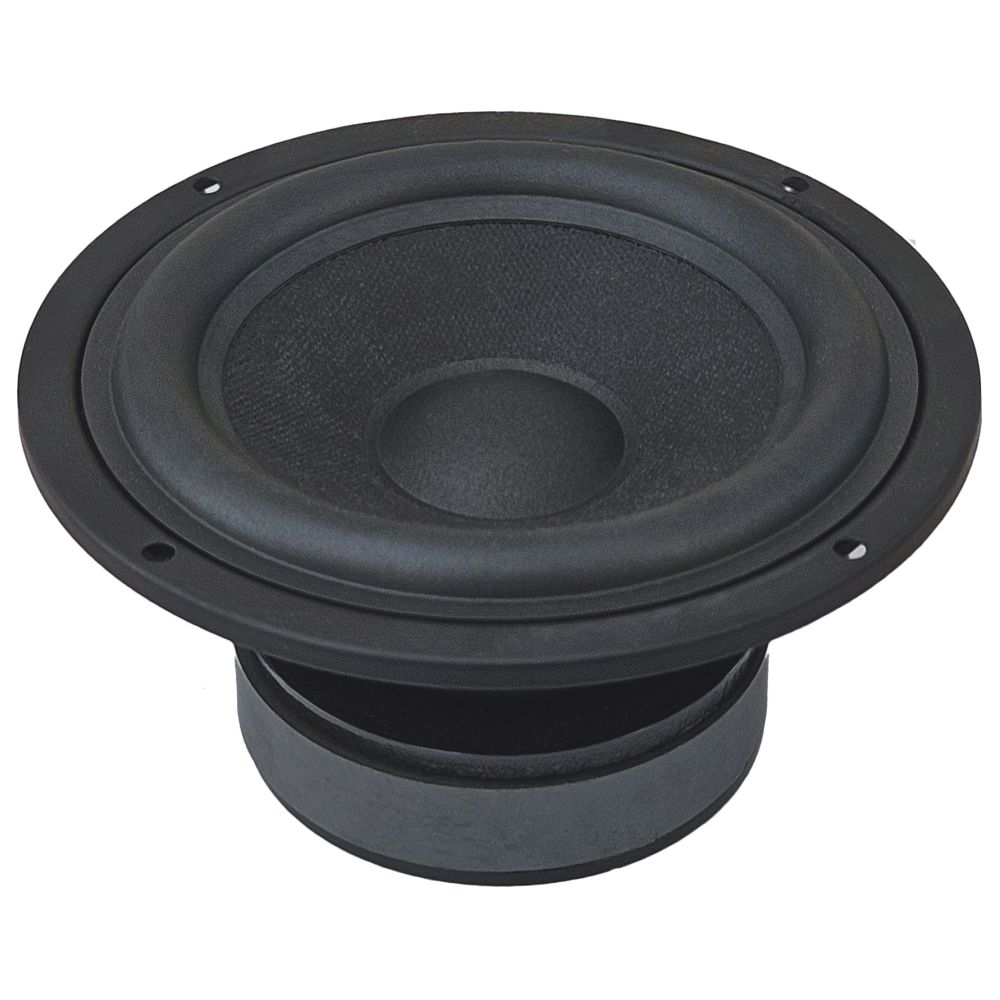

HWL130
LF Driver
5 Inches
HOME
Magnet Material
Ceramic + NEO
Voice Coil Diameter
25 mm 1 in
Continuous Power Handling
150 W
Sensitivity
89 dB
Magnet Material
Ceramic + NEO
Voice Coil Diameter
25 mm 1 in
Continuous Power Handling
150 W
Sensitivity
89 dB
Specifiche
Nominal Diameter
130 mm (5 in)
Nominal Power Handling
50 W
Sensitivity
89 dB
Voice Coil Diameter
25 mm (1 in)
Winding Depth
11 mm (0.43 in)
Impedenza nominale
8 Ω
Continuous Power Handling
150 W
Frequency Range
45 Hz - 10000 Hz
Former Material
Kapton
Magnetic Gap Depth
6 mm (0.24 in)
Parametri
Fs
53 Hz
Qes
0.46
Qts
0.43
Sd
87 cm² (13.49 in²)
Xmax
4 mm (0.16 in)
Bl
5.8 Tm
Cms
1.1 mm/N
EBP
115 Hz
Re
5.7 Ω
Qms
6.78
Vas
11.2 dm³ (0.22 ft³)
η0
0.36 %
Mms
8.1 g
Le
0.5 mH
d
105 mm (4.13 in)
Design
Surround Shape
Rubber
Recommended Enclosure
50 dm³ (1.77 ft³)
Recommended Loading
Vented Box
Suspension
Doped fabric
Magnet Material
Ceramic + NEO
Recommended Tuning
50 Hz
Connection Type
Fast-On
Cone Material
Doped cellulose fiber
Informazioni di montaggio e spedizione
Diametro totale
144.5 mm (5.69 in)
Baffle Cutout Diameter
115 mm (4.53 in)
Flange and Gasket Thickness
4.5 mm (0.18 in)
Shipping Units
6 pcs
Bolt Quantity
4 pcs
Bolt Circle Diameter
135.5 mm (5.33 in)
Depth
71 mm (2.8 in)
Net Weight
1.06 kg (2.34 lb)
Basket Material
Steel
Bolt Diameter
4.5 mm (0.18 in)
