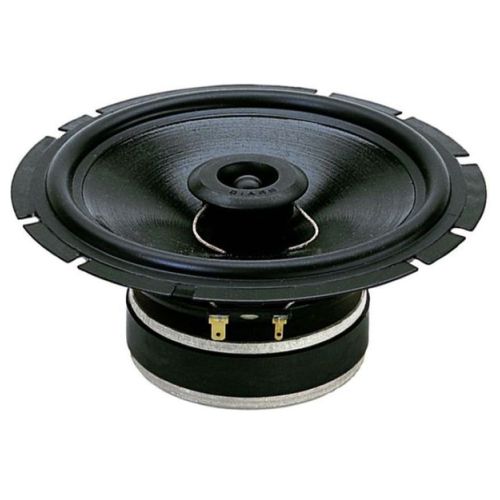

CX171
Coaxial
6.5 Inches
CAR
Voice Coil Diameter
25 mm 1 in
Voice Coil Diameter
25 mm 1 in
Continuous Power Handling
150 W
Continuous Power Handling
150 W
Voice Coil Diameter
25 mm 1 in
Voice Coil Diameter
25 mm 1 in
Continuous Power Handling
150 W
Continuous Power Handling
150 W
Specifiche LF unit
Nominal Diameter
165 mm (6.5 in)
Nominal Power Handling
60 W
Sensitivity
90 dB
Former Material
Aluminum
Magnetic Gap Depth
5 mm (0.2 in)
Impedenza nominale
4 Ω
Continuous Power Handling
150 W
Voice Coil Diameter
25 mm (1 in)
Winding Depth
11 mm (0.43 in)
Specifiche HF unit
Nominal Diameter
165 mm (6.5 in)
Nominal Power Handling
60 W
Sensitivity
90 dB
Winding Depth
11 mm (0.43 in)
Impedenza nominale
4 Ω
Continuous Power Handling
150 W
Voice Coil Diameter
25 mm (1 in)
Design
Surround Shape
Rubber
Parametri
Fs
67 Hz
Qes
0.65
Qts
0.55
Sd
133 cm² (20.62 in²)
Xmax
4.3 mm (0.17 in)
Bl
4.6 Tm
d
130 mm (5.12 in)
Re
3.2 Ω
Qms
3.41
Vas
13.6 dm³ (0.48 ft³)
η0
0.62 %
Mms
10 g
Cms
0.55 mm/N
EBP
103 Hz
Informazioni di montaggio e spedizione
Diametro totale
165 mm (6.5 in)
Baffle Cutout Diameter
142 mm (5.59 in)
Flange and Gasket Thickness
6 mm (0.24 in)
Shipping Units
6 pcs
Bolt Quantity
4 pcs
Bolt Circle Diameter
157 mm (6.18 in)
Depth
70 mm (2.76 in)
Net Weight
1.06 kg (2.33 lb)
Basket Material
Steel
Bolt Diameter
5 mm (0.2 in)
