New
FXI3.21
Fullrange Driver
3 Inches
PRO
HOME
Voice Coil Diameter
20 mm 0.79 in
Continuous Power Handling
50 W
Voice Coil Diameter
20 mm 0.79 in
Continuous Power Handling
50 W
Specifications
Nominal Diameter
75 mm (3 in)
Nominal Power Handling
25 W

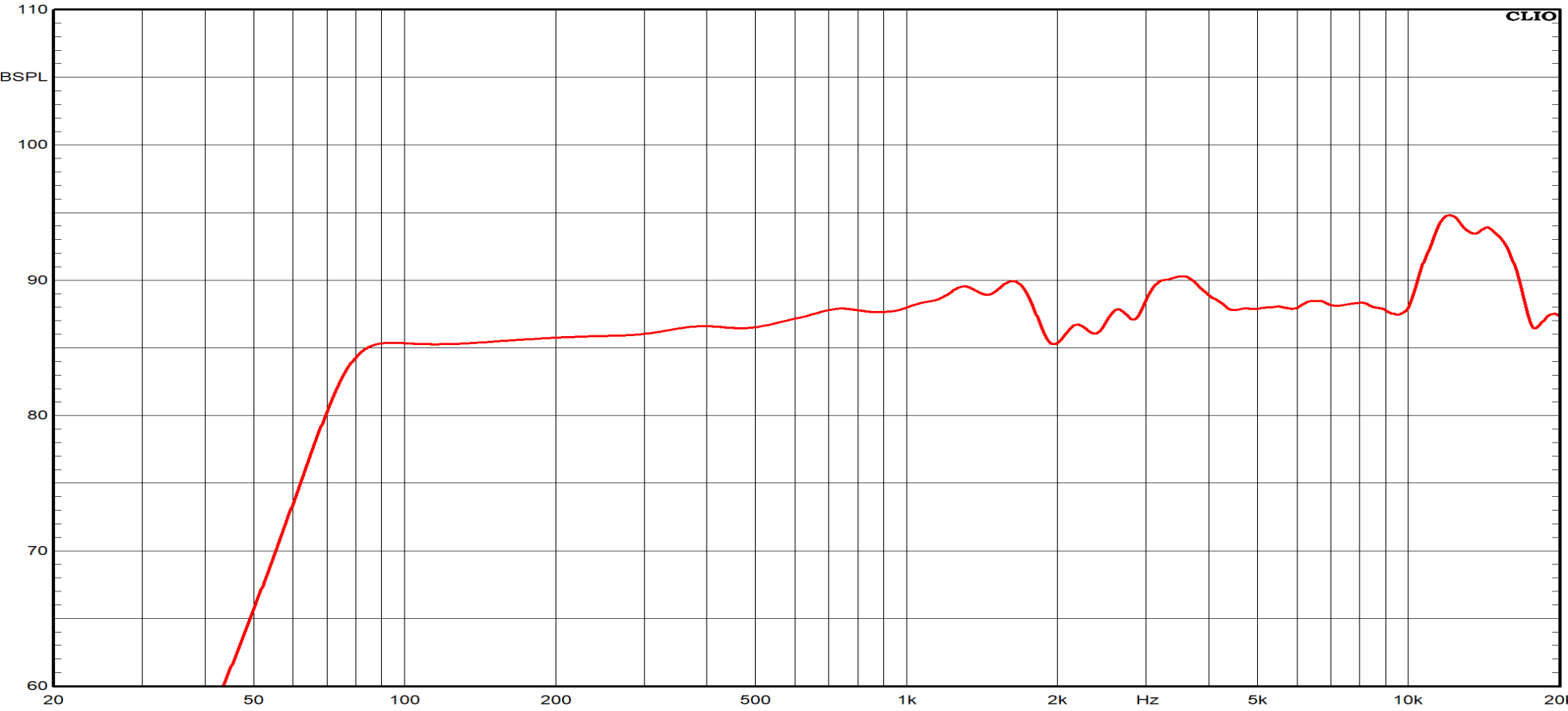

Sensitivity
88 dB
Voice Coil Diameter
20 mm (0.79 in)
Former Material
Kapton

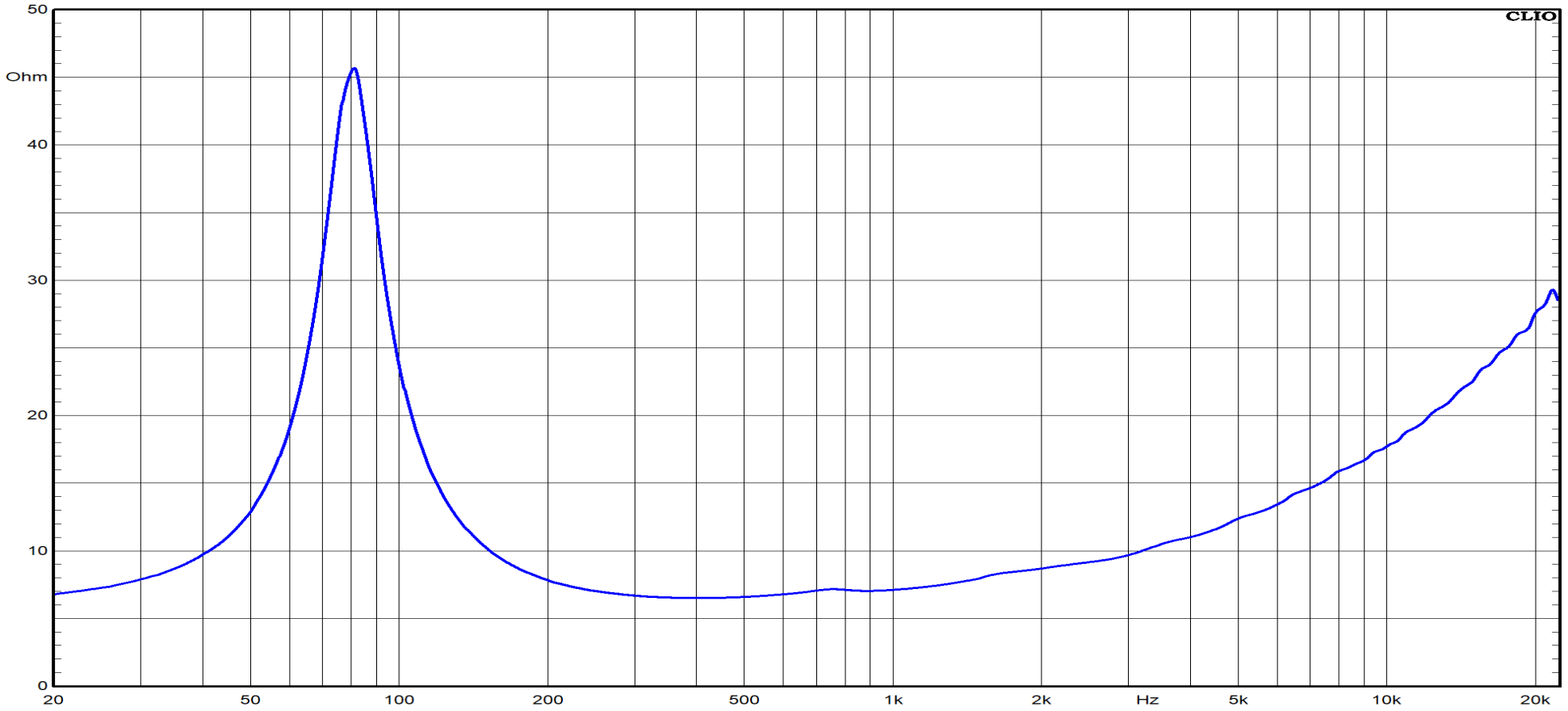

Nominal Impedance
8 Ω
Continuous Power Handling
50 W
Frequency Range
80 Hz - 20000 Hz
Winding Material
Aluminium
Magnetic Gap Depth
4 mm (0.16 in)
Parameters
Fs
90 Hz
Qes
0.49
Qts
0.44
Sd
29 cm² (4.5 in²)
Xmax
2 mm (0.08 in)
Bl
3.7 Tm
d
61 mm (2.4 in)
Re
6.1 Ω
Qms
4.09
Vas
1.8 dm³ (0.06 ft³)
η0
0.18 %
Mms
2.2 g
Le
0.1 mH
EBP
184 Hz
Design
Surround Shape
Rubber - Half Roll
Magnet Material
Ceramic
Recommended Loading
Sealed box
Cone Material
Doped cellulose fiber
Cone Shape
Exponential
Spider
Single
Connection Type
Faston
Mounting and Shipping Info
Overall Diameter
90 mm (3.54 in)
Baffle Cutout Diameter
70 mm (2.76 in)
Flange and Gasket Thickness
3 mm (0.12 in)
Bolt Quantity
4 pcs
Driver Diameter
75 mm (3 in)
Bolt Circle Diameter
83.5 mm (3.29 in)
Depth
45 mm (1.77 in)
Basket Material
Steel
Bolt Diameter
4.5 mm (0.18 in)
Dimensions
3 mm (75 in)
