New

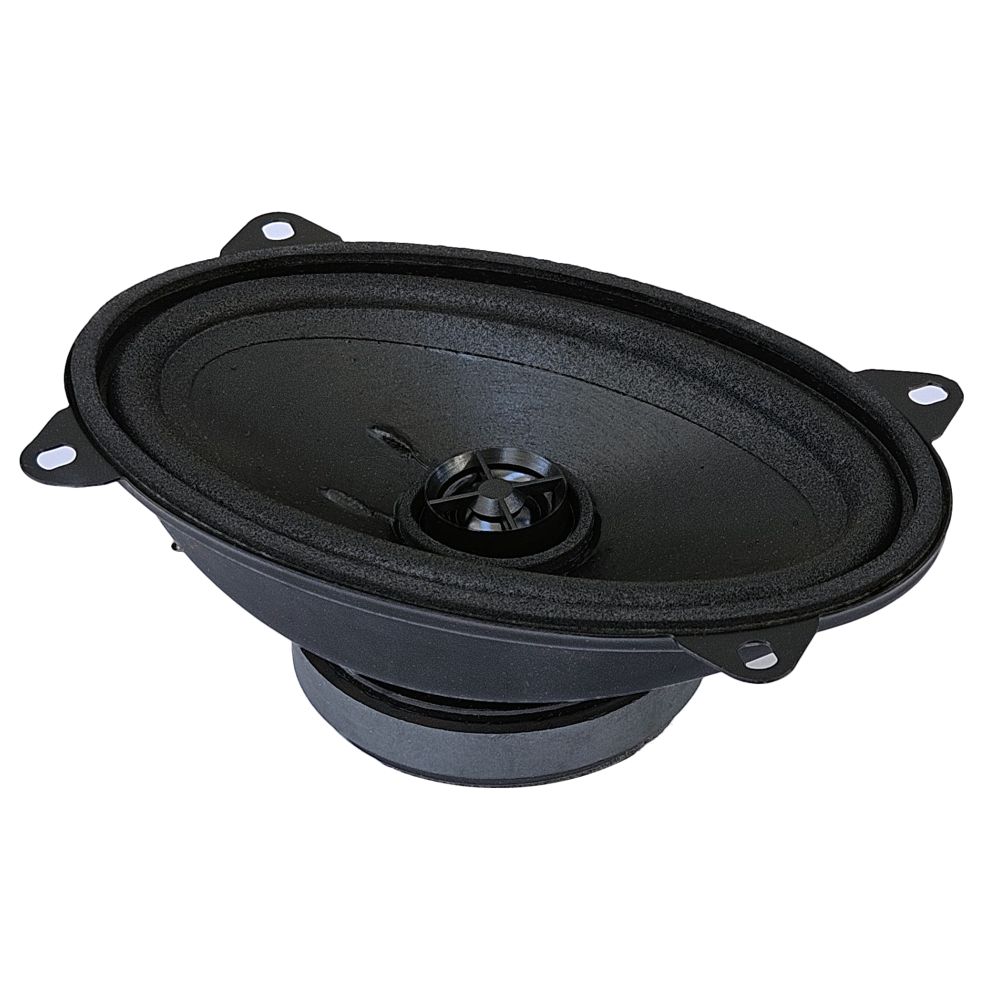

CXE144
Coaxial
6 Inches
CAR
Voice Coil Diameter
25 mm 1 in
Continuous Power Handling
90 W
Voice Coil Diameter
25 mm 1 in
Continuous Power Handling
90 W
Specifications LF unit
Nominal Diameter
96 mm (6 in)
Nominal Power Handling
45 W
Sensitivity
91 dB
Former Material
Aluminum
Magnetic Gap Depth
4 mm (0.16 in)
Nominal Impedance
4 Ω
Continuous Power Handling
90 W
Voice Coil Diameter
25 mm (1 in)
Winding Depth
6.2 mm (0.24 in)
Parameters
Fs
149 Hz
Qes
2.04
Qts
1.46
Sd
77 cm² (11.94 in²)
Mms
4.8 g
Cms
0.26 mm/N
EBP
73 Hz
Re
3.5 Ω
Qms
5.18
Vas
1.9 dm³ (0.07 ft³)
Xmax
2.1 mm (0.08 in)
Bl
2.79 Tm
d
99 mm (3.9 in)
Mounting and Shipping Info
Overall Diameter
155 mm
Baffle Cutout Diameter
87 mm
Flange and Gasket Thickness
7 mm (0.28 in)
Shipping Units
6 pcs
Bolt Quantity
4 pcs
Bolt Circle Diameter
123 mm
Depth
42.5 mm (1.67 in)
Net Weight
0.48 kg (1.06 lb)
Basket Material
Steel
Bolt Diameter
5 mm (0.2 in)
