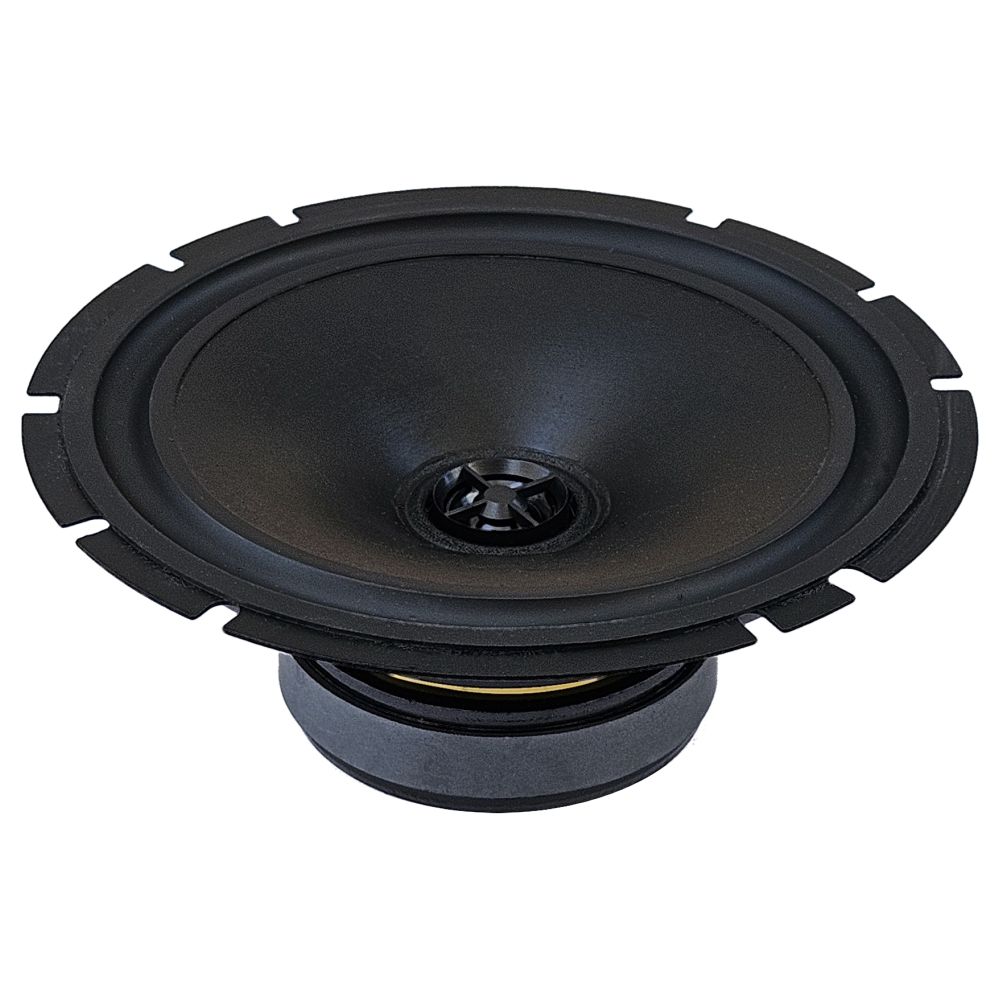

New
CXE174
Coaxial
6.5 Inches
CAR
Voice Coil Diameter
25 mm 1 in
Continuous Power Handling
150 W
Voice Coil Diameter
25 mm 1 in
Continuous Power Handling
150 W
Specifications LF unit
Nominal Diameter
165 mm (6.5 in)
Nominal Power Handling
75 W
Sensitivity
92 dB
Former Material
Aluminum
Magnetic Gap Depth
4 mm (0.16 in)
Nominal Impedance
4 Ω
Continuous Power Handling
150 W
Voice Coil Diameter
25 mm (1 in)
Winding Depth
6.2 mm (0.24 in)
Parameters
Fs
65 Hz
Qes
1.17
Qts
0.93
Sd
133 cm² (20.62 in²)
Mms
9.5 g
Cms
0.62 mm/N
EBP
56 Hz
Re
3.3 Ω
Qms
4.54
Vas
15 dm³ (0.53 ft³)
Xmax
2.1 mm (0.08 in)
Bl
3.33 Tm
d
130 mm (5.12 in)
Mounting and Shipping Info
Overall Diameter
165 mm (6.5 in)
Baffle Cutout Diameter
142 mm (5.59 in)
Flange and Gasket Thickness
6 mm (0.24 in)
Shipping Units
6 pcs
Bolt Quantity
4 pcs
Bolt Circle Diameter
157 mm (6.18 in)
Depth
66 mm (2.6 in)
Net Weight
0.71 kg (1.56 lb)
Basket Material
Steel
Bolt Diameter
5 mm (0.2 in)
