New

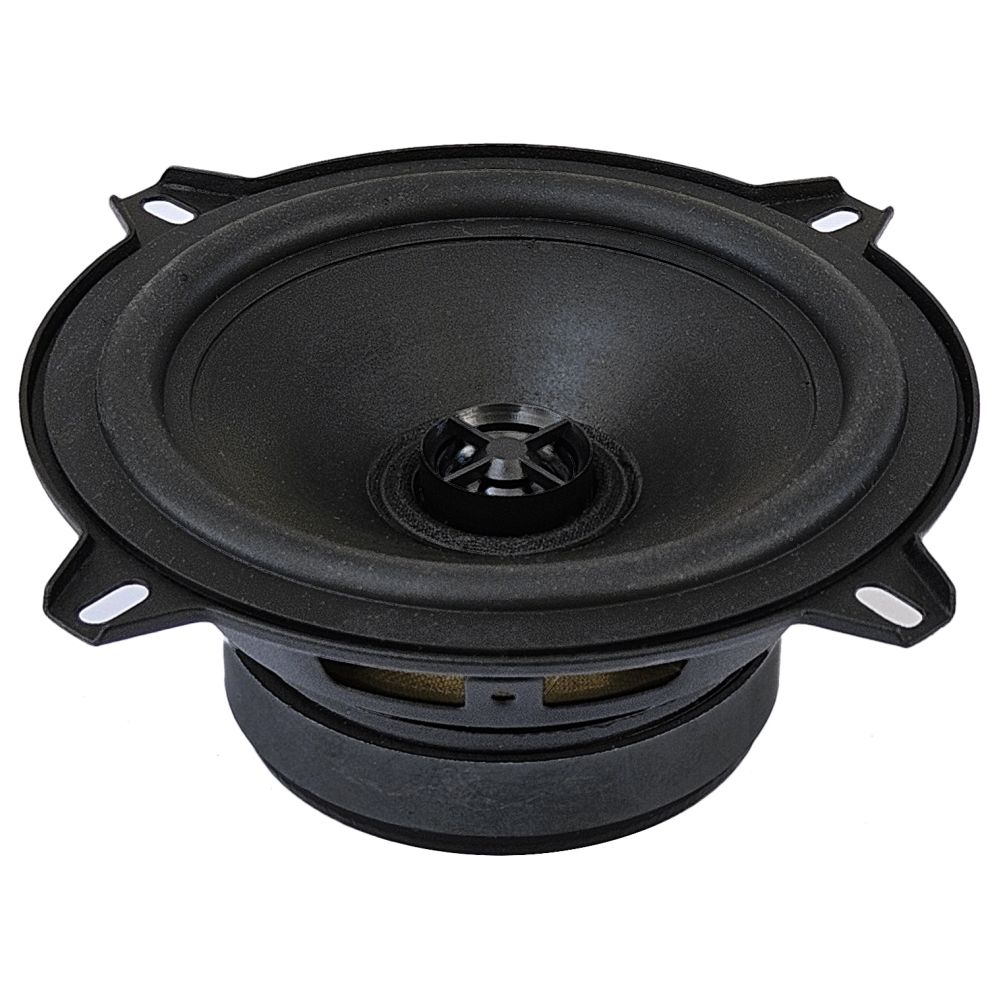

CXE134
Coaxial
5 Inches
CAR
Voice Coil Diameter
25 mm 1 in
Continuous Power Handling
150 W
Voice Coil Diameter
25 mm 1 in
Continuous Power Handling
150 W
Specifications LF unit
Nominal Diameter
130 mm (5 in)
Nominal Power Handling
75 W
Sensitivity
91 dB
Former Material
Aluminum
Magnetic Gap Depth
4 mm (0.16 in)
Nominal Impedance
4 Ω
Continuous Power Handling
150 W
Voice Coil Diameter
25 mm (1 in)
Winding Depth
6.2 mm (0.24 in)
Parameters
Fs
84 Hz
Qes
0.99
Qts
0.78
Sd
88 cm² (13.64 in²)
Mms
6.1 g
Cms
0.58 mm/N
EBP
85 Hz
Re
3.4 Ω
Qms
3.79
Vas
5.2 dm³ (0.18 ft³)
Xmax
2.1 mm (0.08 in)
Bl
3.33 Tm
d
106 mm (4.17 in)
Mounting and Shipping Info
Overall Diameter
129.5 mm (5.1 in)
Baffle Cutout Diameter
112 mm (4.41 in)
Flange and Gasket Thickness
8 mm (0.31 in)
Shipping Units
6 pcs
Bolt Quantity
4 pcs
Bolt Circle Diameter
140 mm (5.51 in)
Depth
55 mm (2.17 in)
Net Weight
0.5 kg (1.1 lb)
Basket Material
Steel
Bolt Diameter
5 mm (0.2 in)
