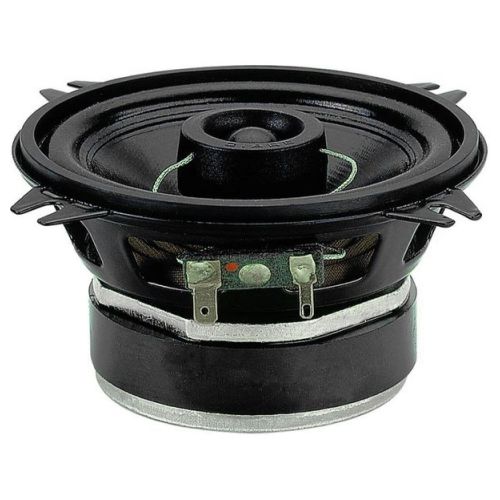

CX102
Coaxial
4 Inches
CAR
Voice Coil Diameter
25 mm 1 in
Voice Coil Diameter
25 mm 1 in
Continuous Power Handling
100 W
Continuous Power Handling
100 W
Voice Coil Diameter
25 mm 1 in
Voice Coil Diameter
25 mm 1 in
Continuous Power Handling
100 W
Continuous Power Handling
100 W
Specifications LF unit
Nominal Diameter
100 mm
Nominal Power Handling
40 W
Sensitivity
89 dB
Former Material
Aluminum
Magnetic Gap Depth
5 mm (0.2 in)
Nominal Impedance
4 Ω
Continuous Power Handling
100 W
Voice Coil Diameter
25 mm (1 in)
Winding Depth
6.2 mm (0.24 in)
Specifications HF unit
Nominal Diameter
100 mm
Nominal Power Handling
40 W
Sensitivity
89 dB
Winding Depth
6.2 mm (0.24 in)
Nominal Impedance
4 Ω
Continuous Power Handling
100 W
Voice Coil Diameter
25 mm (1 in)
Design
Surround Shape
Polyurethane
Parameters
Fs
125 Hz
Qes
0.51
Qts
0.43
Sd
50 cm² (7.75 in²)
Xmax
1.9 mm (0.07 in)
Bl
4.29 Tm
d
80 mm (3.15 in)
Re
3.13 Ω
Qms
3.02
Vas
1.5 dm³ (0.05 ft³)
η0
0.55 %
Mms
3.8 g
Cms
0.42 mm/N
EBP
245 Hz
Mounting and Shipping Info
Overall Diameter
100.5 mm (3.96 in)
Baffle Cutout Diameter
91 mm (3.58 in)
Flange and Gasket Thickness
7 mm (0.28 in)
Shipping Units
12 pcs
Bolt Quantity
4 pcs
Bolt Circle Diameter
116 mm (4.57 in)
Depth
54 mm (2.13 in)
Net Weight
0.73 kg (1.61 lb)
Basket Material
Steel
Bolt Diameter
5.5 mm (0.22 in)
