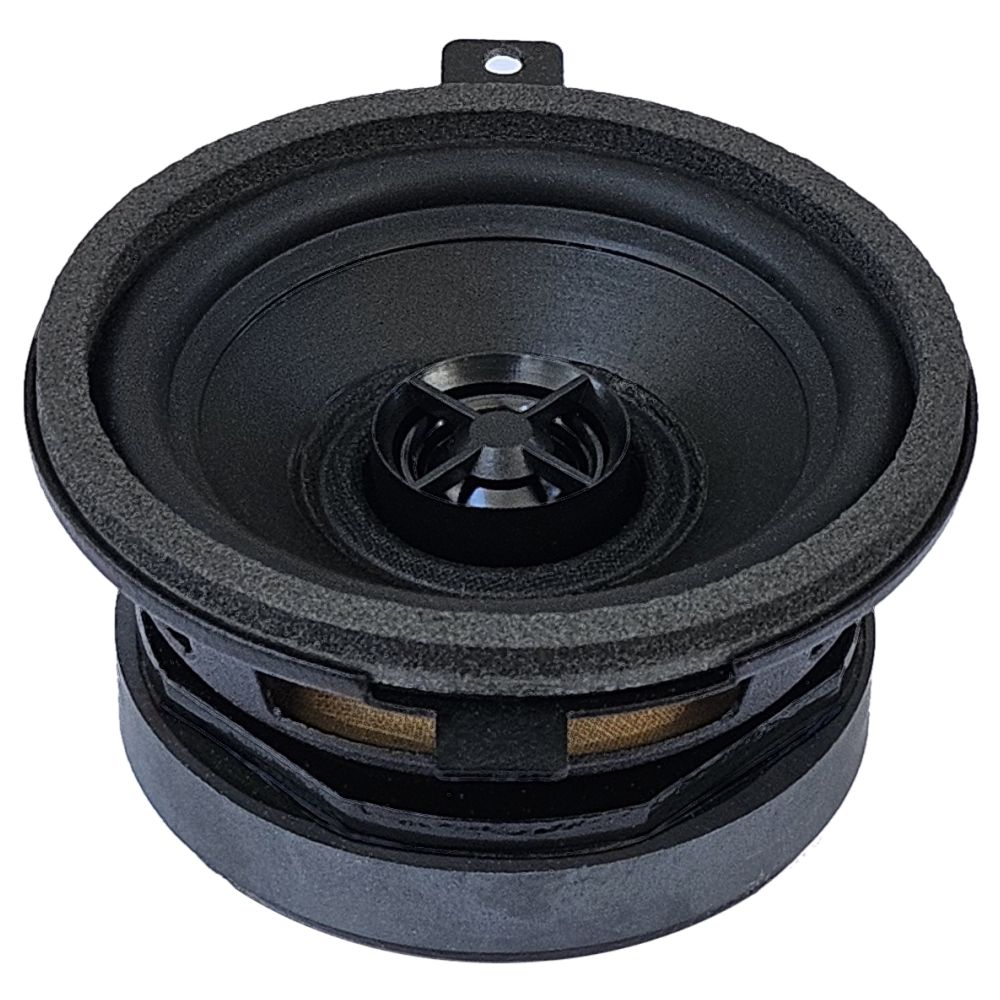

New
CXE874
Coaxial
3.5 Inches
CAR
Voice Coil Diameter
25 mm 1 in
Continuous Power Handling
90 W
Voice Coil Diameter
25 mm 1 in
Continuous Power Handling
90 W
Specifications LF unit
Nominal Diameter
87 mm (3.5 in)
Nominal Power Handling
45 W
Sensitivity
86 dB
Former Material
Aluminum
Nominal Impedance
4 Ω
Continuous Power Handling
90 W
Voice Coil Diameter
25 mm (1 in)
Magnetic Gap Depth
3 mm (0.12 in)
Parameters
Fs
145 Hz
Qes
1.56
Qts
1.23
Sd
33 cm² (5.12 in²)
Mms
3.6 g
Cms
0.33 mm/N
EBP
93 Hz
Re
3.3 Ω
Qms
5.88
Vas
0.6 dm³ (0.02 ft³)
Xmax
1.6 mm (0.06 in)
Bl
2.66 Tm
d
65 mm (2.56 in)
Mounting and Shipping Info
Overall Diameter
87 mm (3.43 in)
Baffle Cutout Diameter
77 mm (3.03 in)
Flange and Gasket Thickness
7.5 mm (0.3 in)
Shipping Units
12 pcs
Bolt Quantity
1 pcs
Bolt Circle Diameter
112 mm (4.41 in)
Depth
43.5 mm (1.71 in)
Net Weight
0.35 kg (0.77 lb)
Basket Material
Steel
Bolt Diameter
4 mm (0.16 in)
